Product Features:

1)      Expanded graphite chemically and mechanically fused to a metal core.

2)      Good load bearing property and good crush resistance.

3)      Good gas and liquid sealability, no re-torque requirements.

4)      Resilient and compressible, low creep, with excellent bolt torque retention.

5)      Wide application temperature ranges:-40 to 500 °C, with good chemical resistance. Optional steel-reinforced ports for higher temperature applications(head gasket with fire ring).

6)      Good radiation resistance and thermal conductivity.

7)      Anti-stick surface coating available.

Areas Of Application:

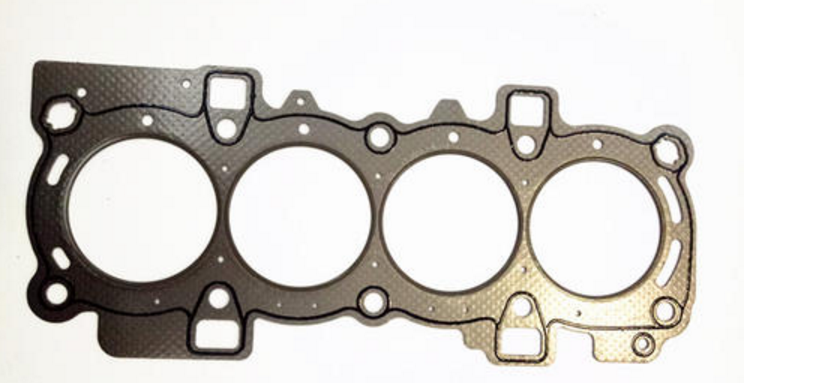

Head gasket, exhaust flange gasket, EGR valves, heat shielding gasket.

Ideal for gasket and seal application where surface movement exists.

Application requiring excellent chemical resistance.

Product Selection:

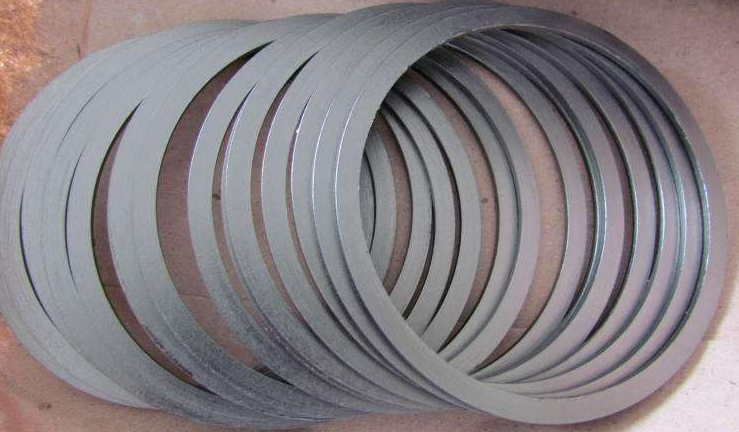

Metal core plate sandwiched between graphite facings. Single graphite facing fused onto a metal plate. Graphite material enveloped between metal plates.
